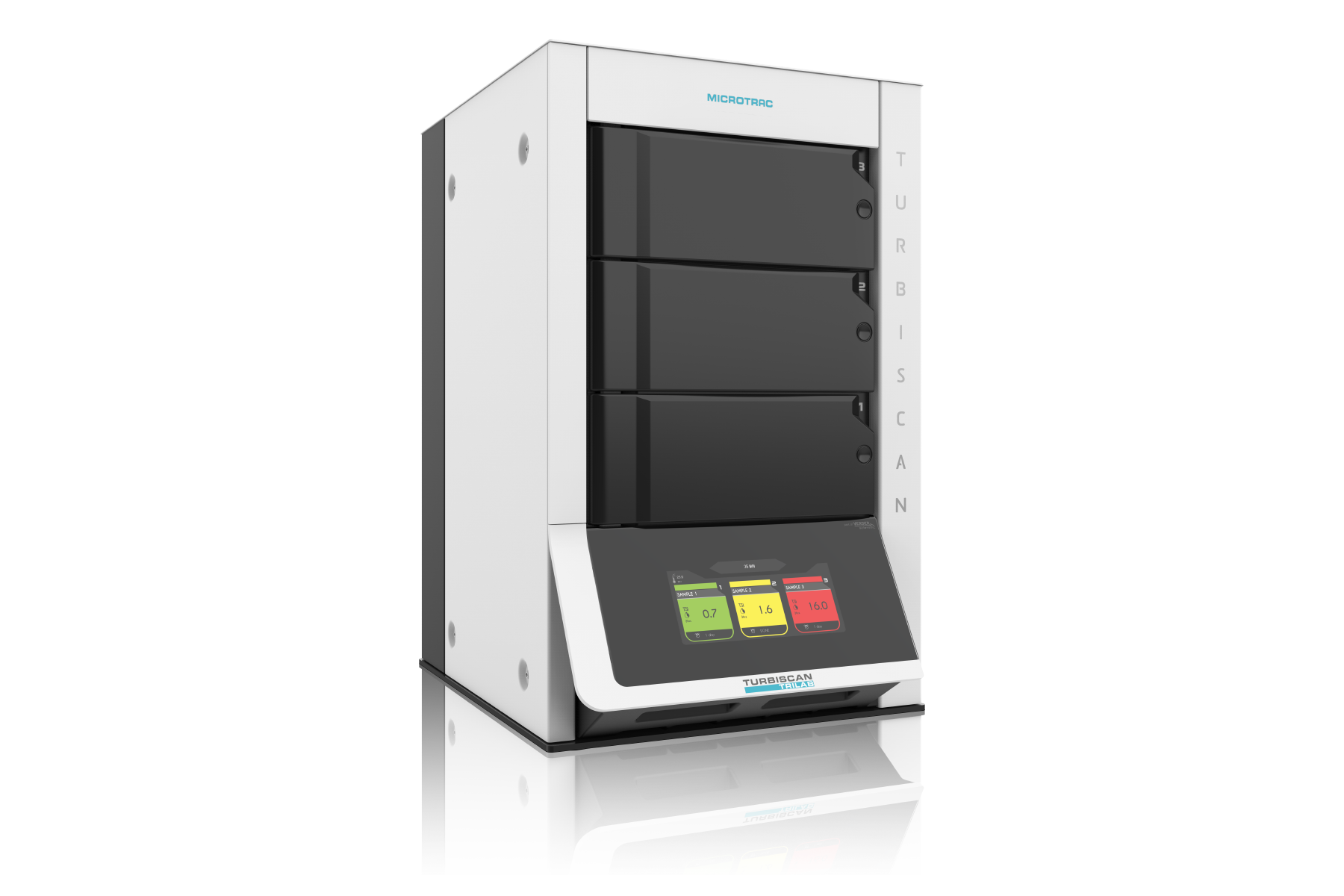

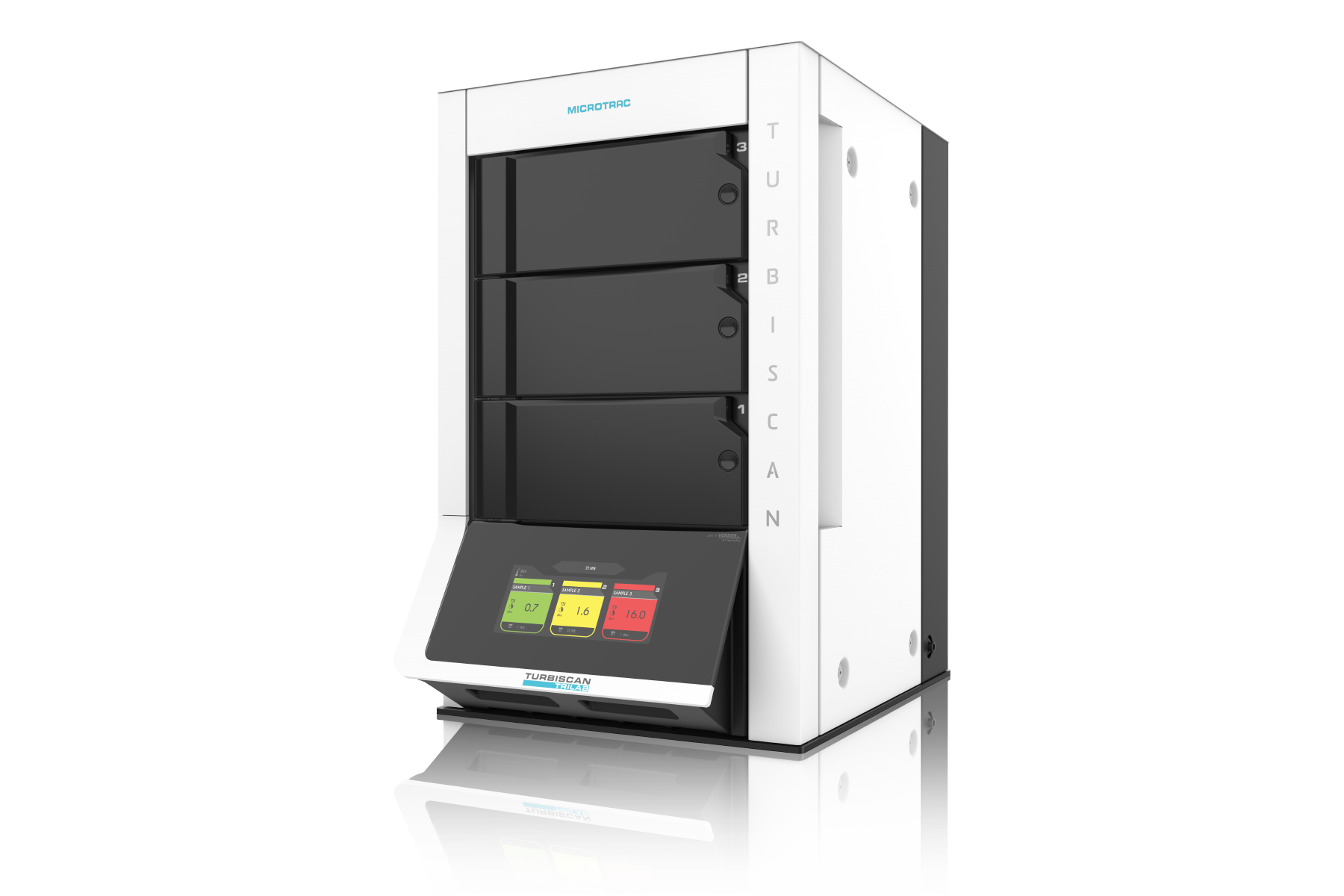

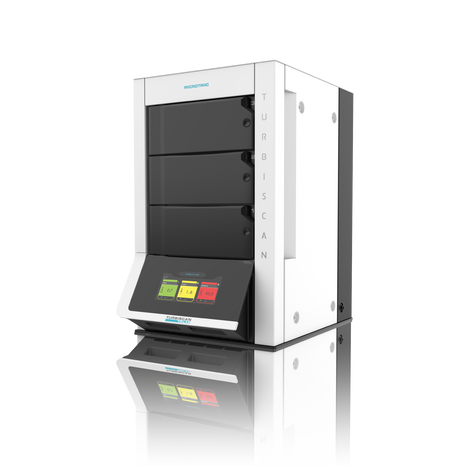

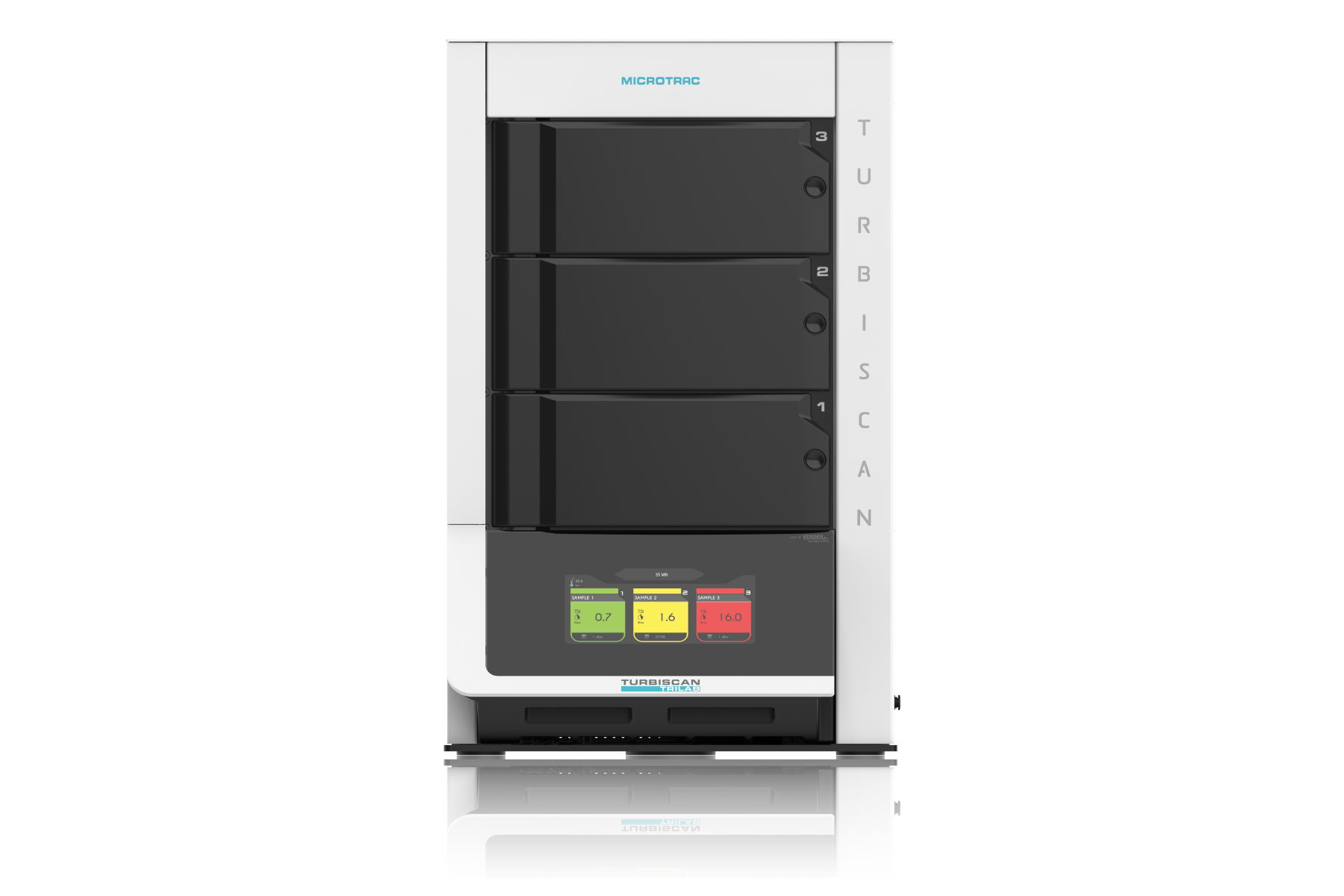

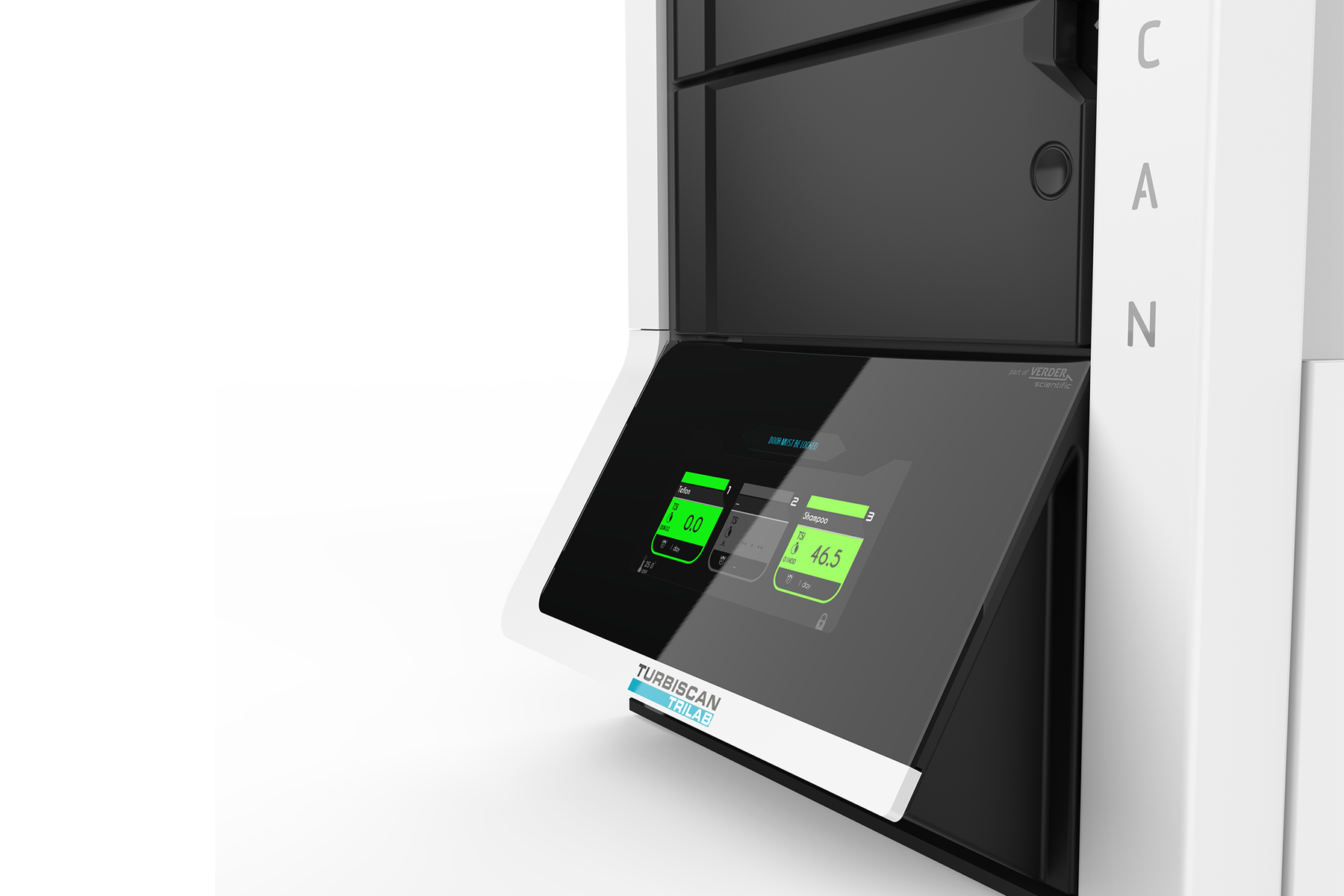

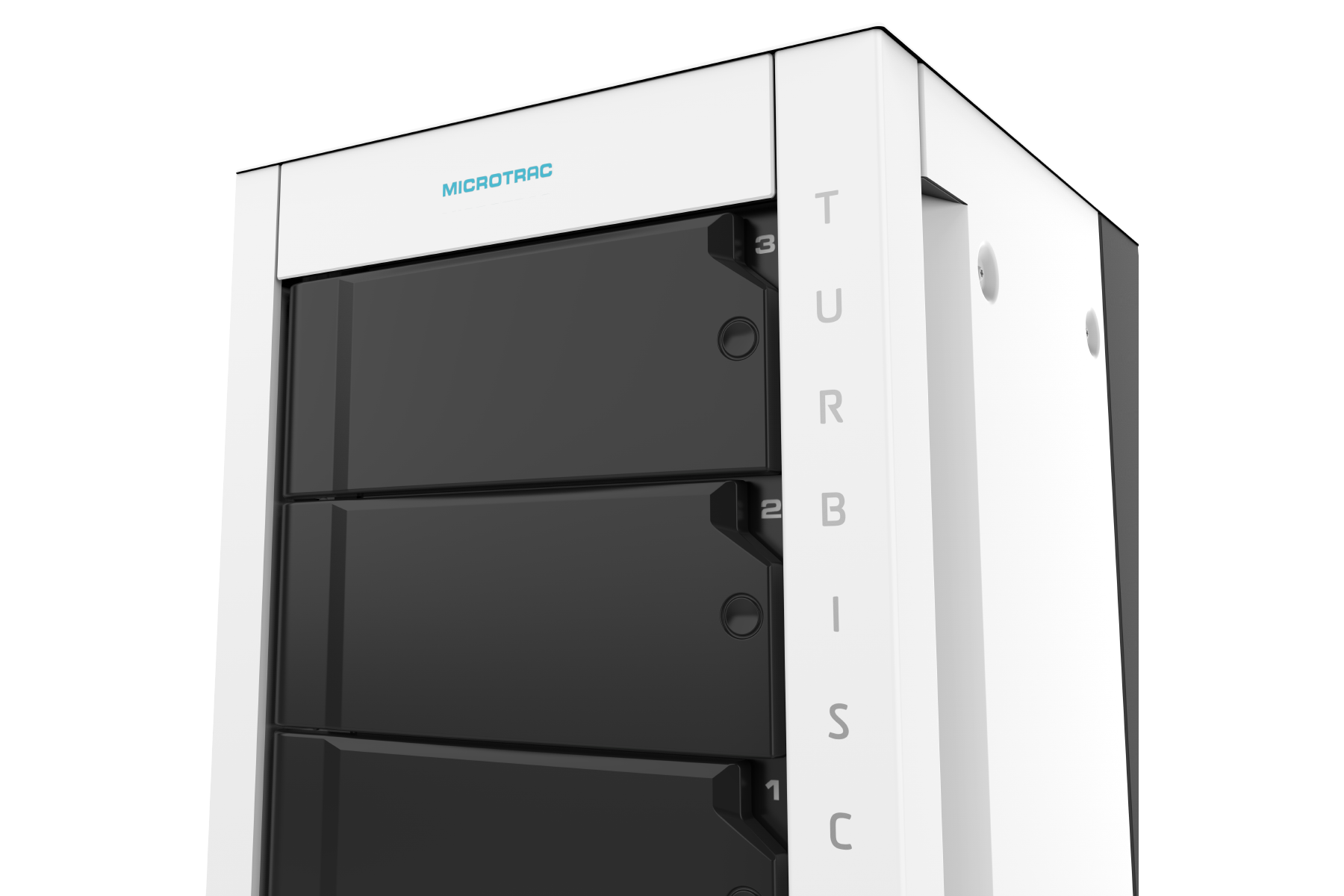

Multi-sample stability analyzer TURBISCAN TRILAB Technical Data
| Automatic sample recognition (bar-code) | Yes |
|---|---|
| CE Certified | Yes |
| Dimensions | 38 x 48 x 58 cm |
| Displacement interval max. resolution | 5 µm |
| Standards | ISO/TR 13097:2013, ISO/TR 18811:2018, ISO/TS 22107:2021, ISO/TS 21357:2022 |
| Measured size range | 10 nm - 1 mm |
| Wavelength | 880 nm |
| Measuring Principle | Static Multiple Light Scattering (SMLS) |
| Particle size distribution | Yes (additional software required) |
| Number of Samples | 1 - 3 |
| Reproducibility / Repeatability on latex standards | +/- 0.05% / 0.05% |
| Sample concentration | 0.0001 - 95% v/v |
| Sample volume | 2 - 20 mL |
| Scan step resolution | 20 µm |
| Software | TurbiSoft Trilab |
| Temperature range | 20 - 60°C |
| Weight | 35 kg |
